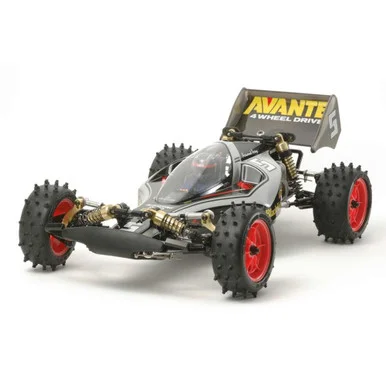

Tamiya Avante Buggy Kit 4WD (2011) Black LIMITED EDITION (TAM47390)

Description

This is a Limited-Edition Black Special release of the Avante 2011 edition, which was originally released to commemorate the 35th anniversary of Tamiya R/C car products. It sports a color scheme inspired by its Mini 4WD cousin the Avante Black Special.

1/10 Avante 4×4 Buggy Kit (2011), Black (Limited Edition) Overview

The machine features a unique shaft-driven 4WD system which was taken from Tamiya’s first 4WD R/C buggy, the Hotshot. It features a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor and battery positions, and a formula-type body with chassis fairing. It is equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.

The modern specification of the car has a few updates, such as universal drive-shafts and machined aluminum uprights, which gives this version increased durability and performance over the original.

1/10 Avante 4×4 Buggy Kit (2011), Black (Limited Edition) Features

• Carbon-fiber parts such as 2mm thickness upper and lower decks, plus rear damper stay offer superb strength.
• Includes Avante (2011) Racing Steering Set, with a 2mm thickness carbon fiber steering plate and 850 ball bearings giving silky smooth motion.
• Includes Avante (2011) Torque Splitter Set, with torque splitter and ball differentials for sure-footed traction.
• Aluminum front uprights.
• Spike tires are mounted on fluorescent pink wheels.
• Comes with a 25-Turn motor featuring a special label.
• 4-wheel double wishbone suspension has metal shafts for great customizability.

• Pre-Painted Body

  Kit includes Limited Edition pre-painted polycarbonate body inspired by its Mini 4WD cousin the Avante Black Special.

• Unique Shock Design

  The Avante features a unique shock geometry that resembles a laid back shock design, which allows great control of the vehicle while also maintaining a sleek silhouette

• Limited Edition Motor

  Kit includes a 25-turn motor featuring a special Avante label

• Wheels and Tires

  Spike tires are mounted on fluorescent pink wheels.

• Sophisticated Chassis

  Kit features a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor and battery positions, and a formula-type body with chassis fairing.

Select Options Included
The shaft-driven 4WD chassis features carbon fiber upper/lower decks (2mm) and rear damper stay (3.5mm) which ensure superb strength. Front/rear ball differentials and center torque splitter help provide sure-footed traction. Racing steering set with 2mm thick carbon fiber plate offers linear steering response. 4-wheel double wishbone suspension with metal shafts and oil dampers allows a high degree of setting customization. Aluminum front knuckles feature the same shape as those on the original Avante and radius arm protector absorbs shocks to prevent damage to suspension arms. A total of 26 ball bearings contribute to the model’s smooth power.

Specifications
★Length: 420mm, Width: 240mm, Height: 140mm ★Wheelbase: 260mm ★Tread (F/R): 200mm ★Tire Width/Diameter: 32/88mm (Front), 40/88mm (Rear) ★2mm Carbon Fiber Double Deck Frame ★Longitudinally-Mounted Motor, Shaft-Driven Full-Time 4WD ★F/R Ball Differentials & Center Torque Splitter ★3-Piece Steering Tie-Rod with 2mm Carbon Fiber Steering Plate ★4-Wheel Double Wishbone Suspension ★Oil Dampers with Metal Cylinders ★Gear Ratio = 8.33:1 ★25T Motor included ★Requires an Electronic Speed Controller (sold separately)

Separately Required Items
★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery Pack & Charger
