Redarc Bcdc 25A Rear Install Wiring Kit

Description

REDARC BCDC 25A Rear Install Wiring Kit

Streamlined Installation for Rear-Mounted Battery Systems

The REDARC BCDC 25A Rear Install Wiring Kit (BCDCWK-002) is engineered for effortless installation of a REDARC BCDC DC to DC Battery Charger in vehicles where the start battery and auxiliary battery are located at the rear of the vehicle, with the auxiliary battery positioned up to 8.5 meters (28 feet) away from the start battery. This kit is compatible with BCDC1220, BCDC1220-IGN, and BCDC1225D models, providing all necessary components for a comprehensive and efficient setup.

Comprehensive Installation Solution

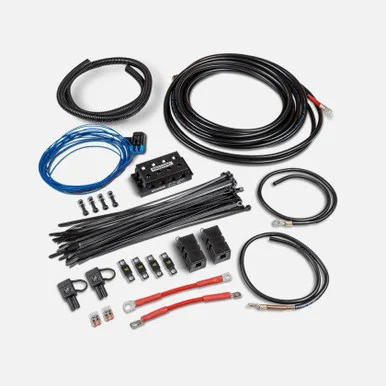

This wiring kit includes:

• Pre-Crimped Cables: Cables are pre-crimped at one end for straightforward installation.
• Fuse Kit and Holders: Ensures secure electrical connections with included fuses and fuse holders.
• Terminal Block: Includes a terminal block with a plastic cover to organize connections effectively.
• Mounting Hardware: Comes with M5 x 25mm socket head screw, M5 nylon locking nuts, and M5 flat washer for robust mounting.
• Additional Components: Features a protective conduit, cable ties, Wago® connector, and boot for enhanced installation flexibility.

Key Features:

• Ideal for Rear Battery Locations: Designed specifically for vehicles where the auxiliary battery is located at the rear, such as in the tray of a ute/pickup truck or the rear of a wagon.
• Easy Customization: Cables can be trimmed to the required length using the supplied terminal block to fit the exact installation specifications.
• Complete Kit: Includes all essential cables, fuses, fuse holders, connectors, and mounting hardware.

Compatibility and Versatility

The REDARC BCDC 25A Rear Install Wiring Kit is designed to meet the needs of both DIY enthusiasts and professional installers, ensuring a neat and reliable installation of your BCDC charger. It supports various REDARC BCDC models and accommodates diverse vehicle configurations, providing robust power management solutions.

Ensure a seamless and efficient installation of your REDARC BCDC DC to DC Battery Charger with the BCDCWK-002 Wiring Kit, tailored to simplify the process and optimize electrical performance for rear-mounted battery systems in your vehicle.
