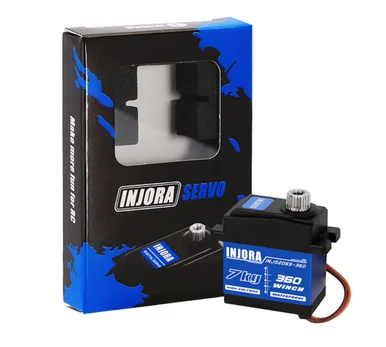

INJORA INJS2065-360 Waterproof 7KG Winch Servo
Features:
- Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease
- IP66 Waterproof Design – Built to perform in wet and muddy conditions
- Overload Protection – Smart current cutoff helps prevent damage under heavy load
- CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail
- Red Tow Hook Included – Adds functionality and a bold visual touch
- Enhanced Visual Appeal – Instantly boosts your rig’s realism and trail presence
Winch Servo Specifications:
- Part Number: INJS2065-360
- Output Spline: 25T
- Dead band: 2μs
- Neutral Position: 1500μs/330hz
- Motor: Core Motor
- Voltage Range: 4.8V-8.4V
- 500-2500μs Angle: 360 Continuous Rotation
- Operating Speed (6.0V): 116 rpm
- Operating Speed (8.4V): 163 rpm
- Stall Torque(6.0V): 6.0 kg.cm
- Stall Torque(8.4V): 7.0 kg.cm
- Dimensions: 23*13*25.8mm
- Weight: 20g
- Connector Wire Length: JR 300mm
- Bearing: 1BB
-
Spline: Φ5.9 25T
