AEM 50-1220 AEM High Flow In-Tank Fuel Pump

Description

340LPH @ 40 psi – Inline Inlet – E85 Compatible AEM’s 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter, end cap and rubber buffer sleeve. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.TECHNICAL SPECS:Weight: 12.5oz (354grams)Outside Diameter: 39mm ODExternal Materials: Black plated steel with laser etchingInlet Fitting: 7.7mm ID, 11.0mm OD. Offset InlineOutlet Fitting: 8 mm hose clamp. OffsetPRV Activation: 80 PSIImpeller Design: Single Scroll Ceramic TurbineVOLTAGE SPECS:Connector Terminal: 6 mm Spade (pos/neg)Min Voltage Input: 6 voltsMax Voltage Input: 18 voltsCurrent Draw (40 psi): 12 amps (13.5v)Current Draw (80 psi): 15 amps (13.5v)Fuse: 20 amps (13.5v)* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
• Designed for high output naturally aspirated and forced induction EFI vehicles
• Tested to flow 340 lph @ 40 PSI
• 39mm diameter fits most applications
• Offset inlet design eases installation
• Each pump individually tested

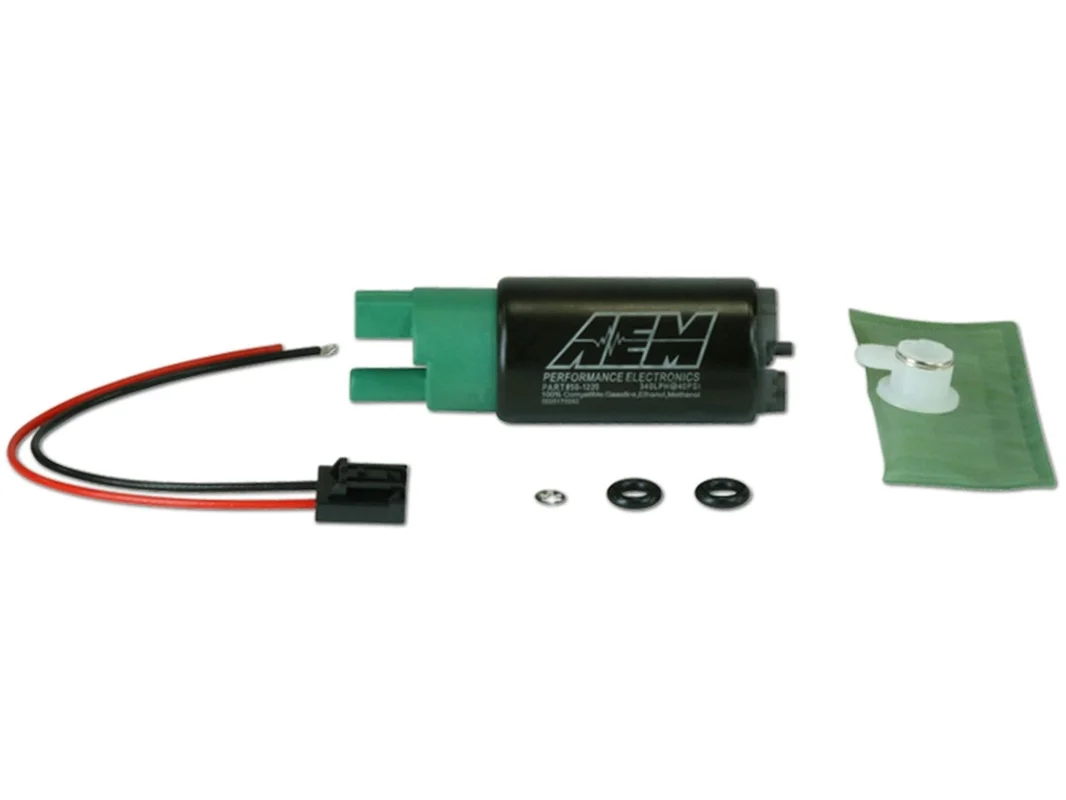

• Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead
• In tank design

Information:

Although AEM’s High Flow Fuel Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. You can consult the Vehicle Search function on our website to see whether a pump is recommended for your vehicle. The Vehicle Search function should be used as a reference only. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump. AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump’s performance or operation if any modifications are made.

Application Summary:
